Products Description

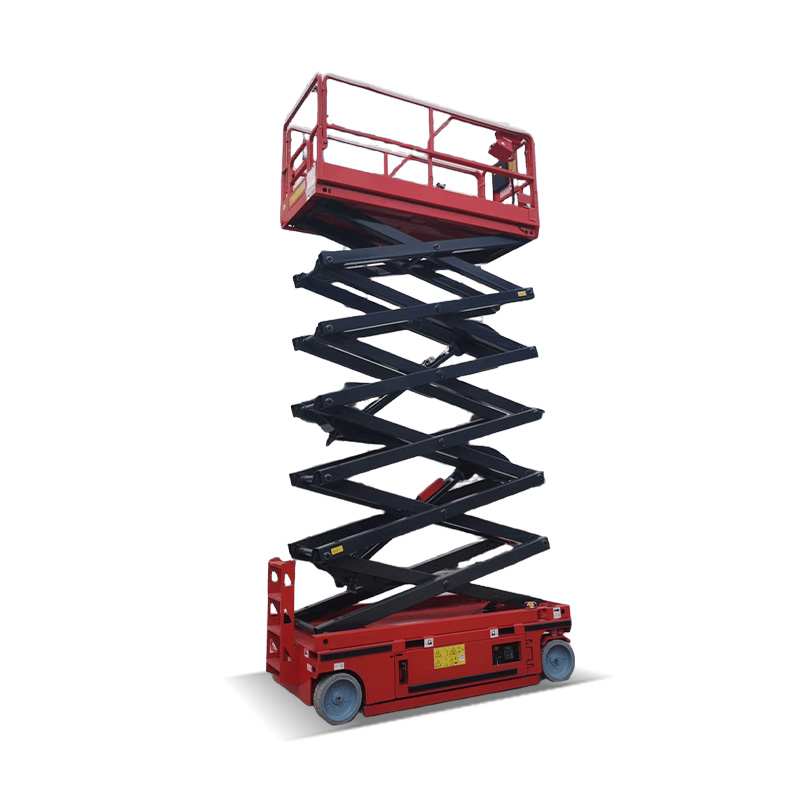

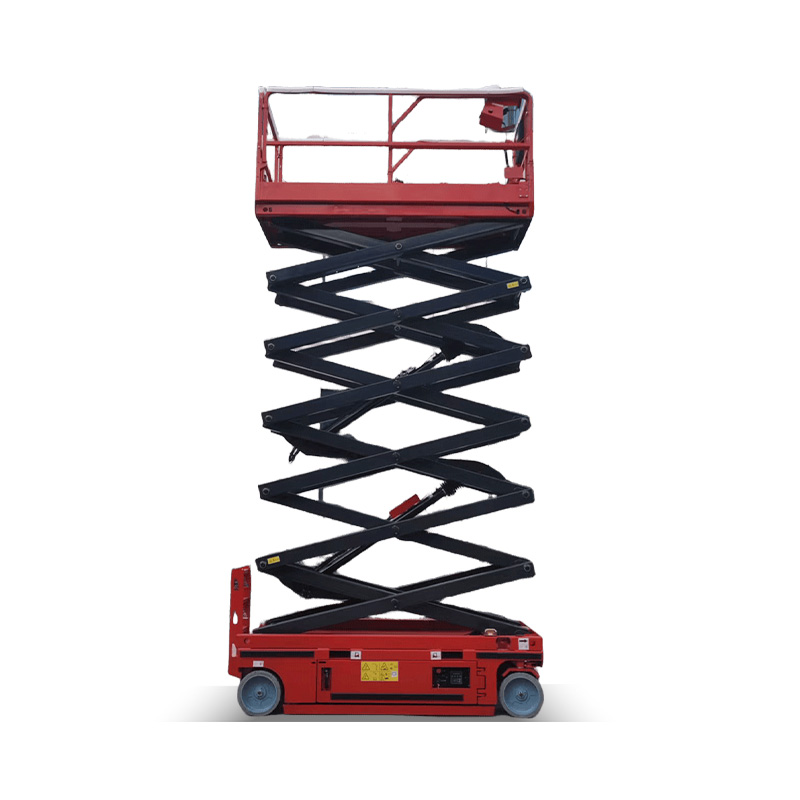

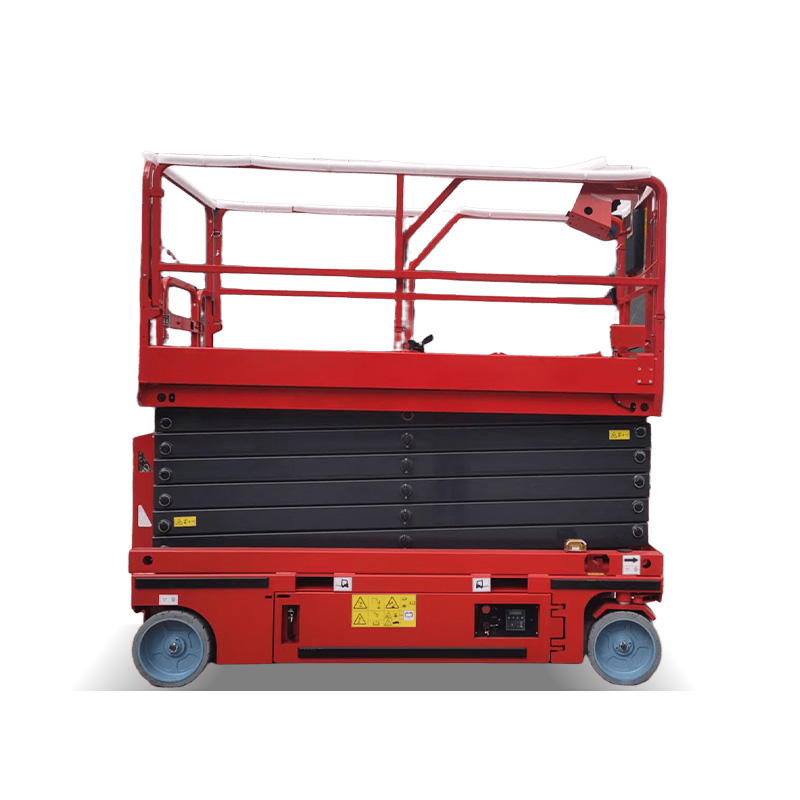

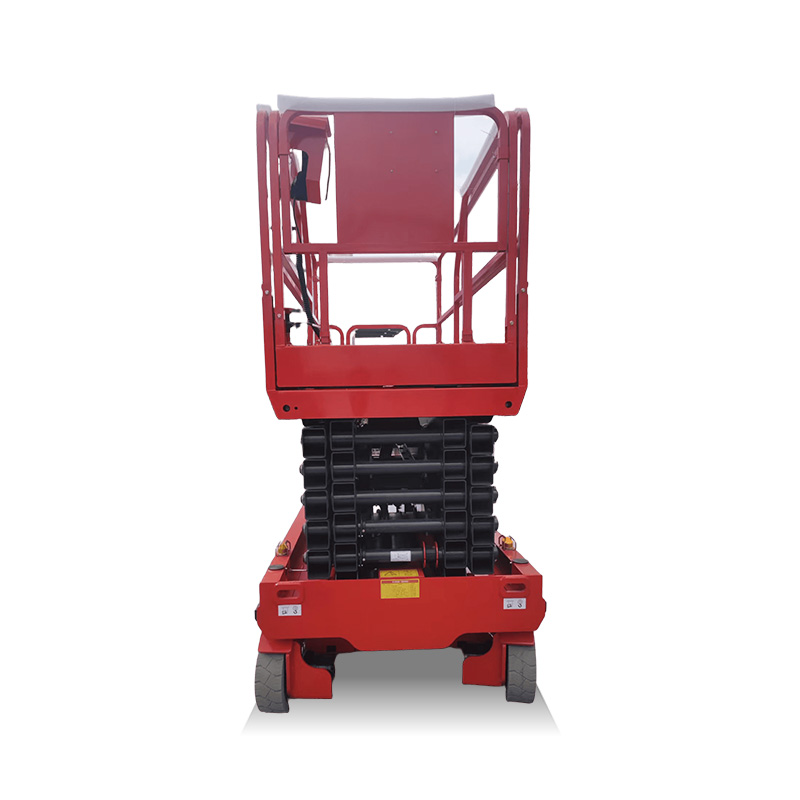

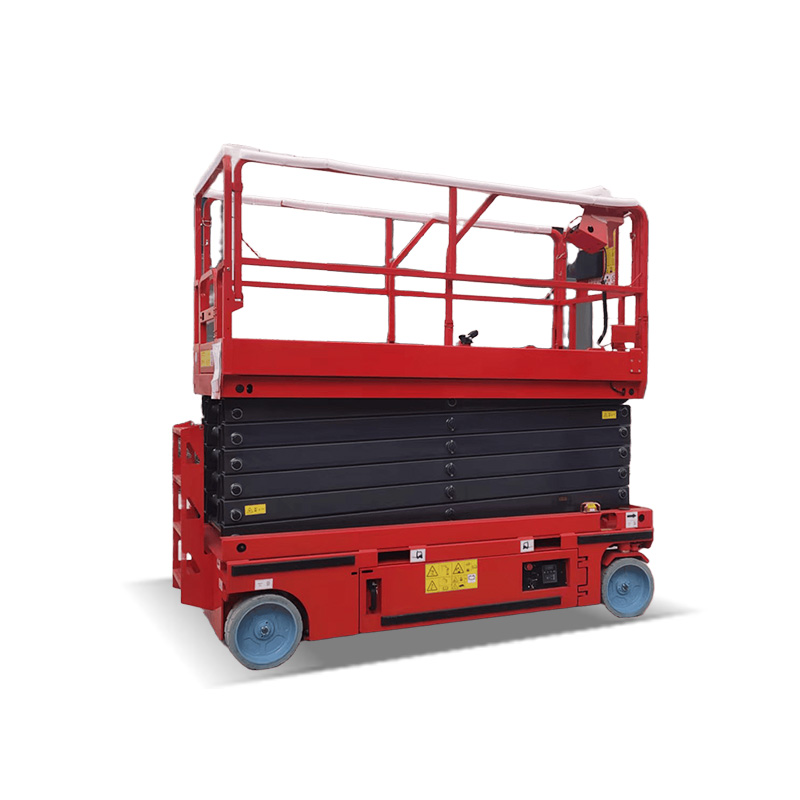

14m High Reach Wheeled Scissor Lift Platform Infrastructure Service Work
14m mobile scissor lift featuring durable frame and wheeled chassis for outdoor operations. Designed for stable lifting at extended height.
Technical Specifications
Max. Working height
15.8m
Max. Platform height
13.8m
Working platform size (L × W × H)
2.64×1.13×1.1m
Overall size (guardrail not folded)
2.84×1.4×2.6m
Overall size (guardrail folded)
2.84×1.4×2.08m
Platform extension size
0.9m
Min. ground clearance
0.1/0.02m
Wheelbase
2.26m
Rated load
227kg
Extended platform safe working load
113kg
Turning radius (inner wheel/outer wheel)
0/2.7m
Lifting/driving motor
24V/4.5kw
Lifting speed
3-5m/min
Machine travel speed (folded state)
3.5km/h
Machine travel speed (lifting state)
0.8km/h
Max. Gradeability
25%
Working maximum allowable angle
1.5°/3°
Machine weight
3390kg
