Products Description

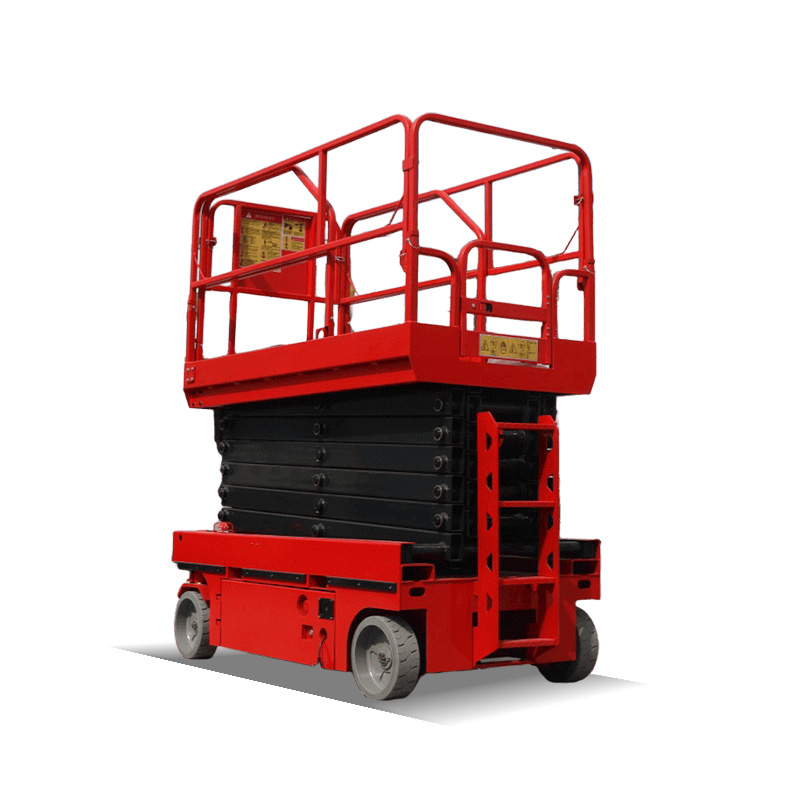

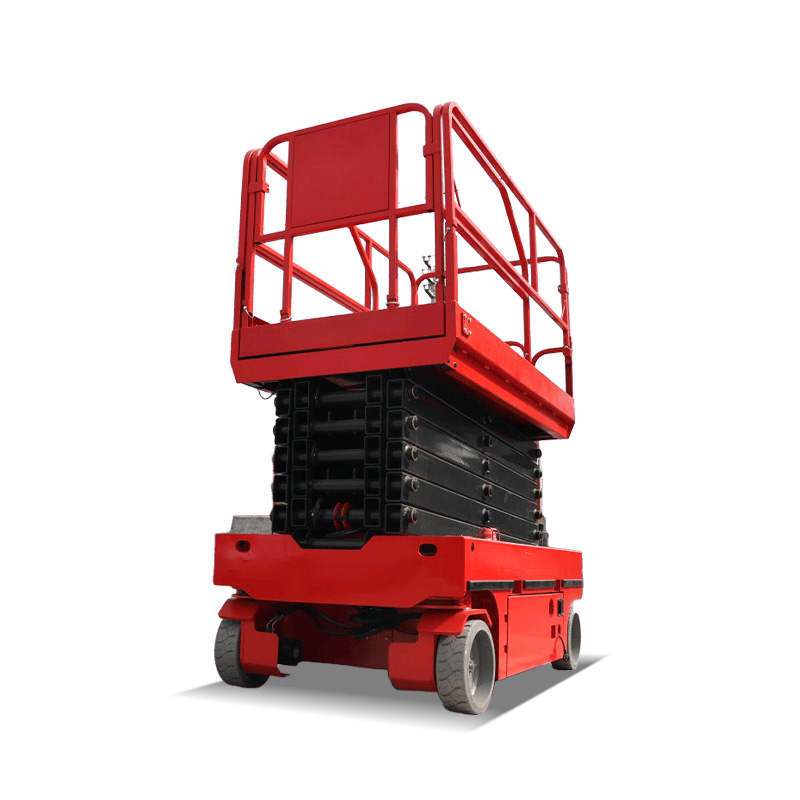

12 Meter Wheel Scissor Lift Mobile Aerial Platform High Reach Warehouse Maintenance
12m electric wheeled scissor lift engineered for warehouse and building maintenance. High reach capability with smooth driving control
Technical Specifications
Max. Working height
13.80m
Max. Platform height
11.80m
Working platform size (L × W × H)
2.23×1.13×1.1m
Overall size (guardrail not folded)
2.47×1.19×2.59m
Overall size (guardrail folded)
2.47×1.19×2.07m
Platform extension size
0.9m
Min. ground clearance
0.1/0.02m
Wheelbase
1.89m
Rated load
320kg
Extended platform safe working load
113kg
Turning radius (inner wheel/outer wheel)
0/2.2m
Lifting/driving motor
24V/4.5kw
Lifting speed
3-5m/min
Machine travel speed (folded state)
3.5km/h
Machine travel speed (lifting state)
0.8km/h
Max. Gradeability
25%
Working maximum allowable angle
1.5°/3°
Tire
Φ381×127mm
Machine weight
2860kg
