Products Description

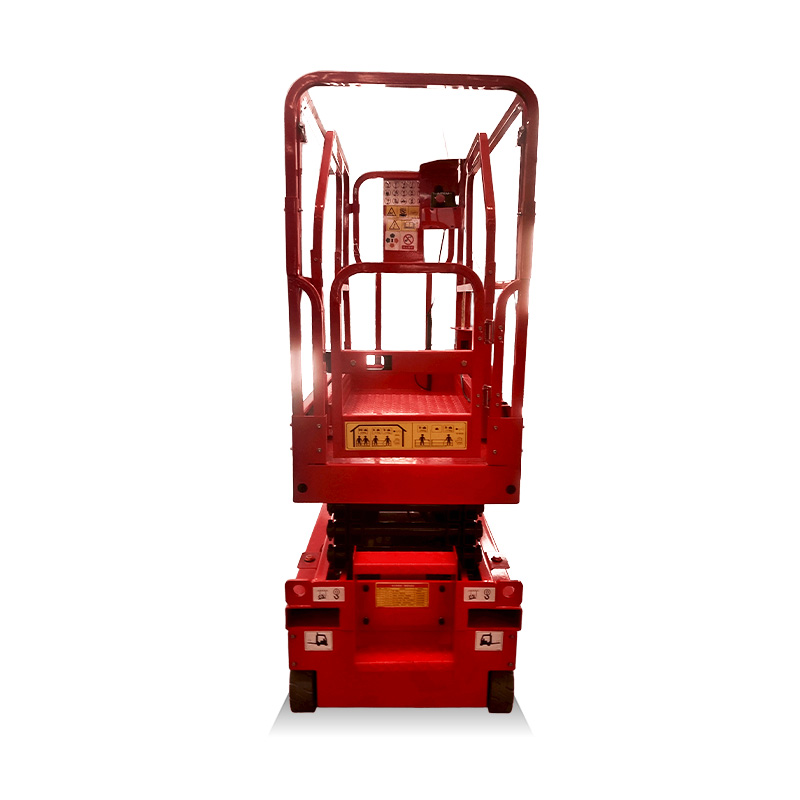

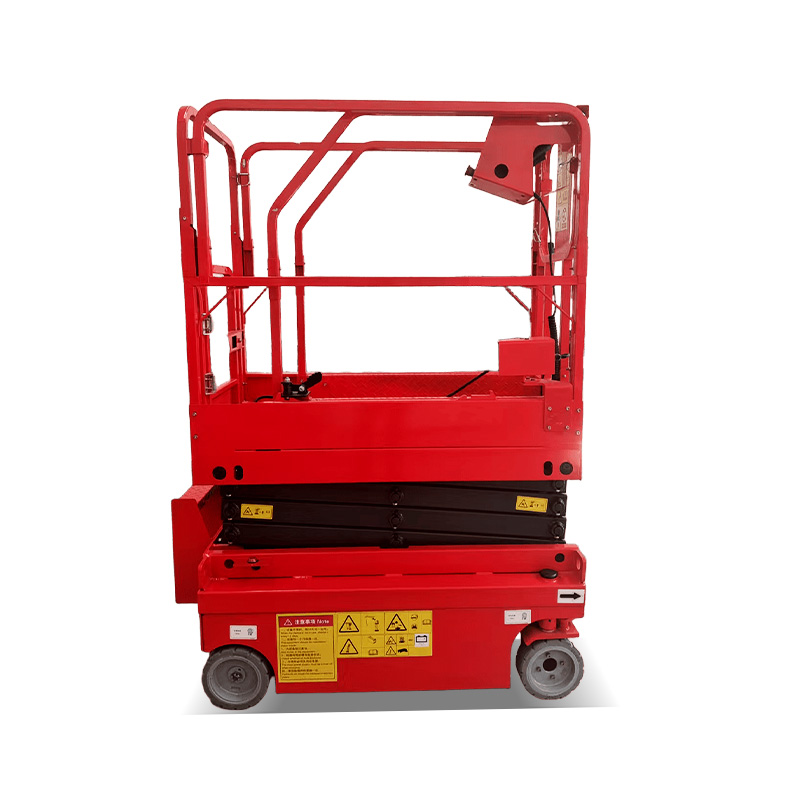

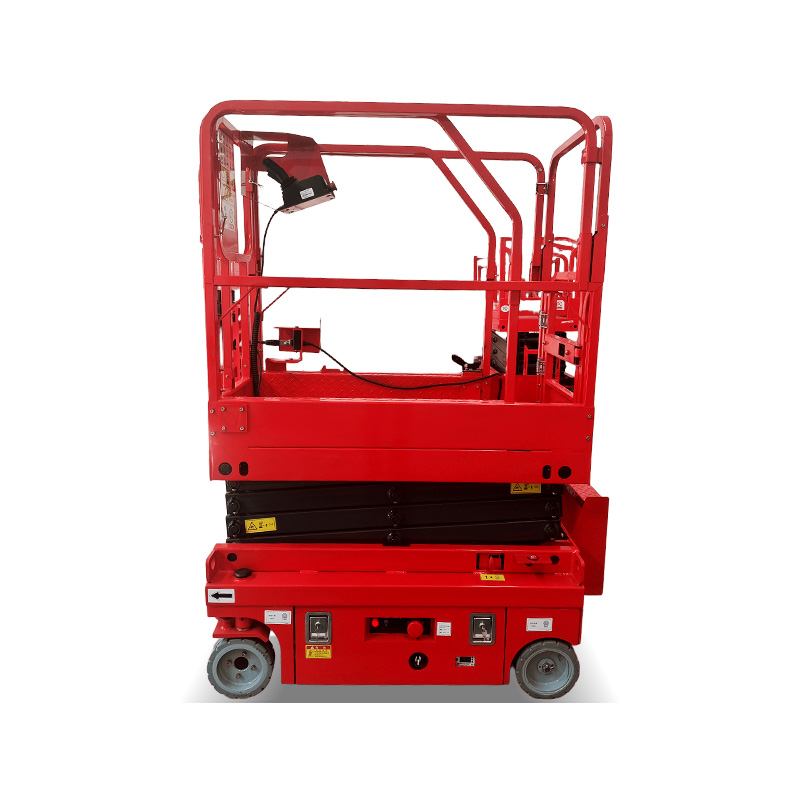

4m Wheeled Scissor Lift Compact Design Indoor Maintenance Access
4m wheeled scissor lift designed for indoor low-height access and warehouse maintenance. Compact size with smooth mobility and easy transport.
Technical Specifications
Max. Working height
6m
Max. Platform height
4m
Working platform size (L × W × H)
1.29×0.7×1.05m
Overall size (not folded)
1.43×0.76×2m
Overall size (guardrail folded)
1.43×0.76×1.64m
Platform extension size
0.6m
Min. ground clearance
0.06/0.015m
Wheelbase
1.05m
Rated load
240kg
Extended platform safe working load
100kg
Turning radius (inner wheel/outer wheel)
1.35m/0.3m
Driving motor
2×24VDC/0.5kw
Lifting motor
24VDC/0.8kw
Lifting speed
4-6m/min
Machine travel speed (folded state)
4.0km/h
Machine travel speed (lifting state)
0.5km/h
Max. Gradeability
25%
Working maximum allowable angle
2°/3°
Machine weight
890kg
Drive wheel
Φ230×80mm
