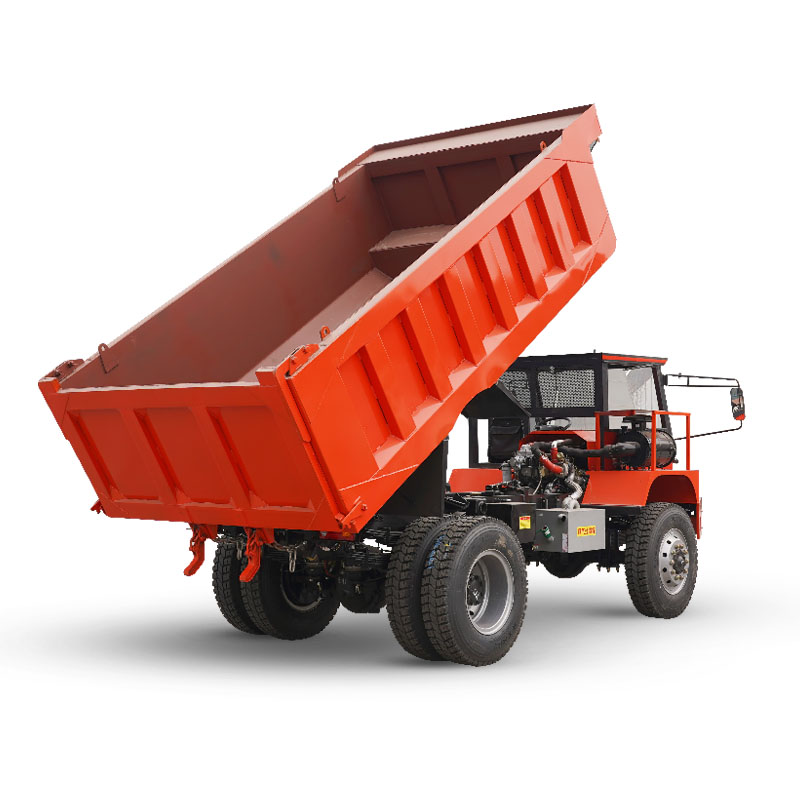

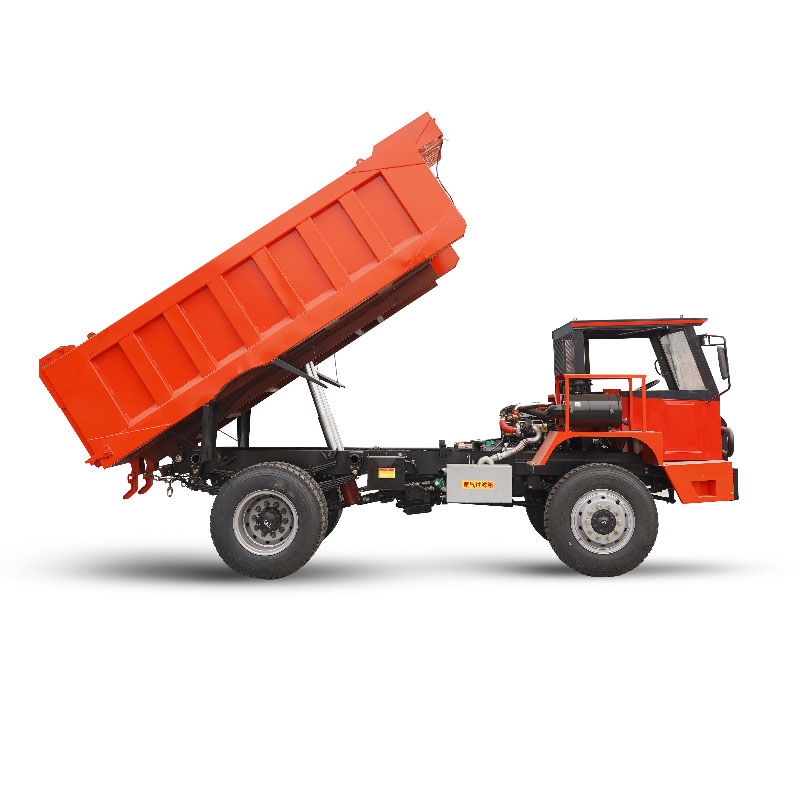

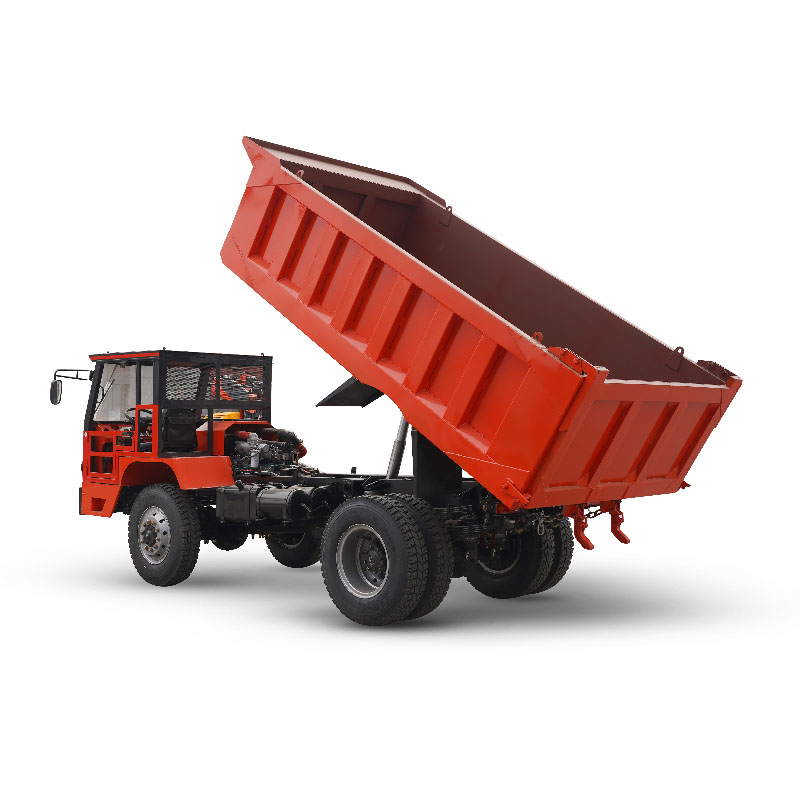

15-Ton Underground Mining Dump Truck for Heavy Hauling with Oil-Cooled Wet Brake System
15-Ton Underground Mining Dump Truck for Heavy Hauling with Oil-Cooled Wet Brake System

15-Ton Underground Mining Dump Truck for Heavy Hauling with Oil-Cooled Wet Brake System

15-ton underground mining dump truck with wet brake system for heavy-duty mining transport.
Send Inquiry

Technical Specifications

Engine Model
Yuchai 4105 Intercooled Turbocharged China National III Engine (YCD4J33T6-155A)
Gearbox Model
10JS90 Transmission
Axle Model
Front Axle 153 (10 holes), Rear Axle 153 (10 holes)
Cargo Box Dimensions
4 × 2.2 × 0.8 m
Cargo Box Steel Plate
10mm Bottom, 8mm Sides
Tire Model
900-20 Kunlun Mining Steel Wire Tires
Frame Model
Cold Riveted: 250×80×8+8 mm
Leaf Spring
Front: 12 Leaves; Rear: 10+6 Leaves, 90×16mm
Hydraulic Cylinder
130×1200 mm
Braking System
Wet Brake
Steering System
Hydraulic Power Steering
Exhaust Treatment
Water Washing Treatment
Driving Position
Left-Hand Drive
Cab
Reinforced Mine Safety Protective Canopy
Overall Vehicle Dimensions
6.0 × 2.3 × 2.0 m (Length × Width × Height)
Operator Standing Height
2 m
Gear Shift Mode
Cable Gear Shift

Products Description

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of underground mining equipment with extensive experience in design, production and global export.

2. What mining equipment do you supply?

We supply underground mining dump trucks, scaling jumbos, tunneling jumbos, wet shotcrete spraying rigs and rock drilling jumbos.

3. What applications are your machines suitable for?

Our equipment is widely used in underground mining, tunneling, hydropower projects and other underground construction applications.

4. Do you provide customized solutions?

Yes. We offer OEM and customized solutions based on tunnel size, rock conditions, haulage capacity and project requirements.

5. What certifications do your products have?

Our equipment can be supplied with CE and other certifications according to your market requirements.

6. What is your delivery time?

Standard delivery time is typically 20–60 days depending on model, quantity and customization requirements.

7. What payment terms do you accept?

We accept T/T, L/C and other payment methods upon mutual agreement.

8. Do you provide spare parts and after-sales support?

Yes. We provide spare parts, technical documentation, remote support and comprehensive after-sales service.

9. Which countries do you export to?

Our mining equipment is exported to Europe, Southeast Asia, the Middle East, Africa and South America.

10. How can I get a quotation?

Send us your required model, technical specifications and project details, and we will provide a quotation within 24 hours.
