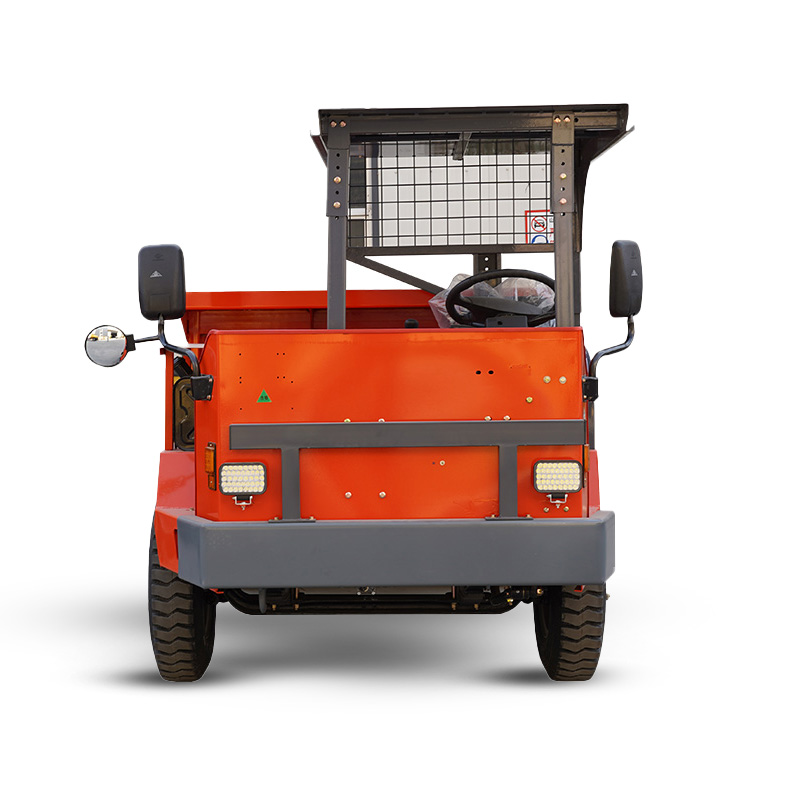

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System
3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

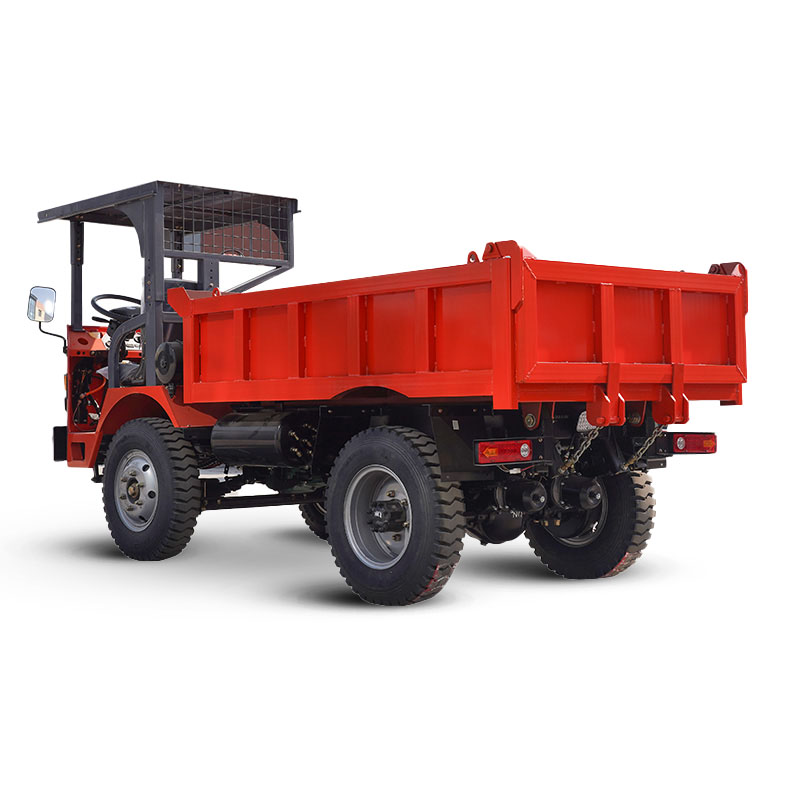

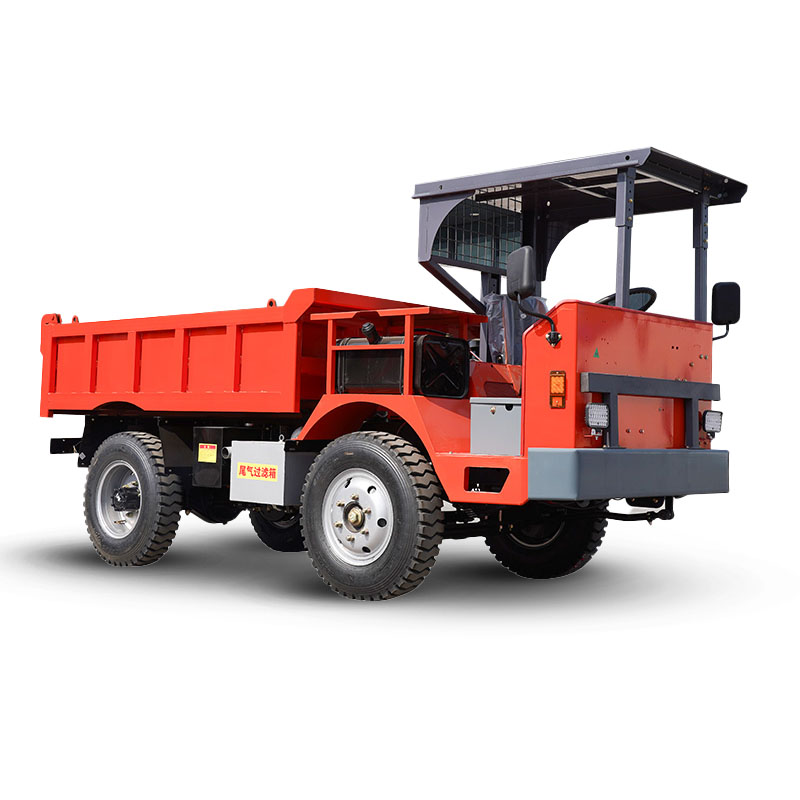

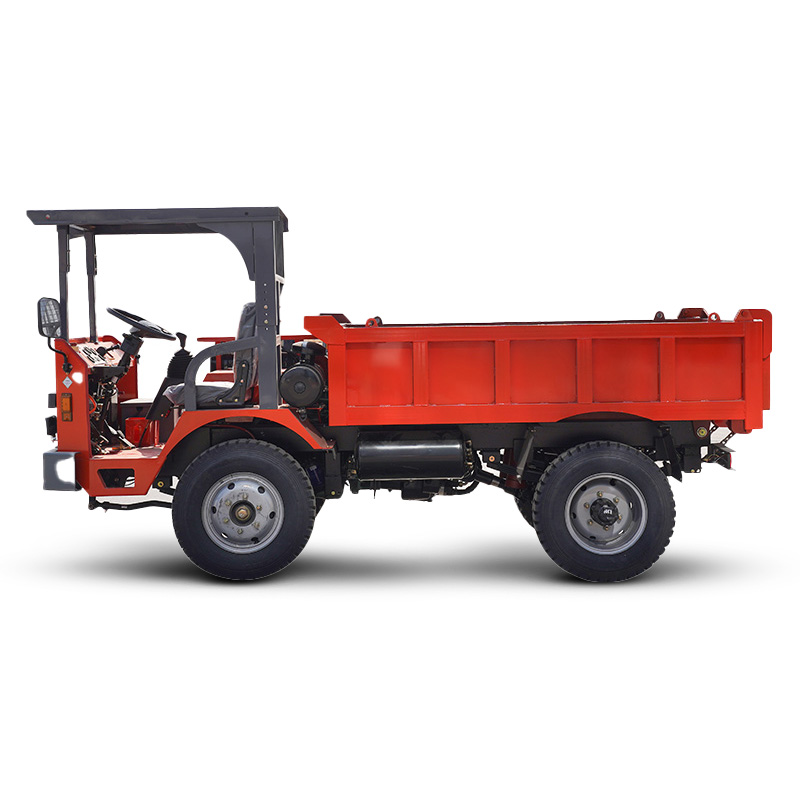

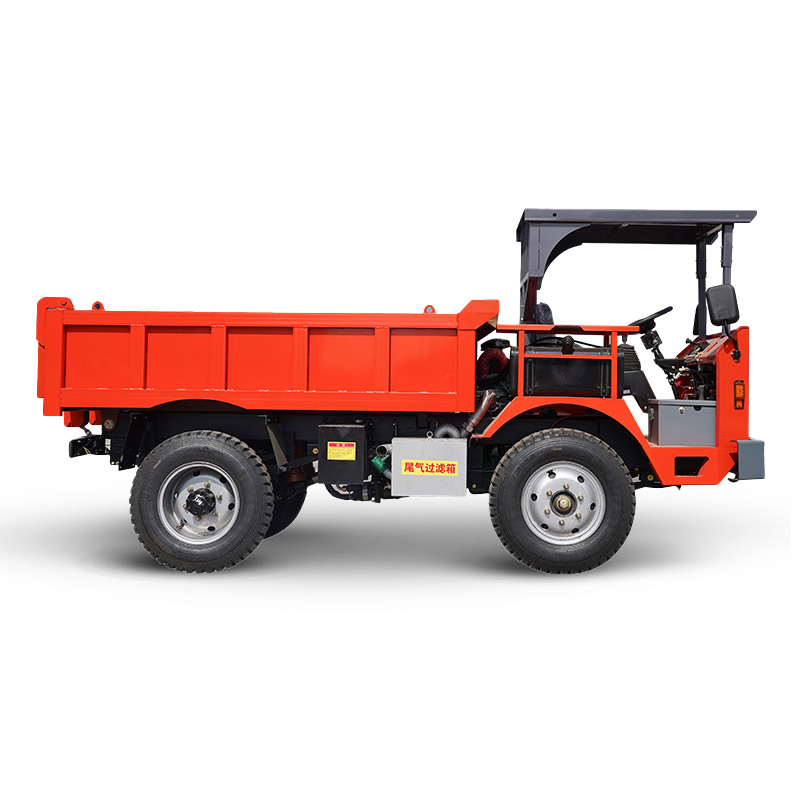

Compact 3.5-ton underground mining dump truck with wet brake system for narrow tunnel operations.
Send Inquiry

Technical Specifications

Engine
Changchai National III 4G33T (44.1kW)
Gearbox
Nanjing 130 gearbox with high & low speed
Axle
Front Isuzu Axle, Rear Isuzu Axle
Cargo Box Size
2.4 × 1.5 × 0.45 m
Cargo Plate Thickness
6mm Bottom, 4mm Side
Tire
700-16 (Rear Single Wheel) Chaoyang Mining Steel Wire Tire
Frame Model
160×60×6 mm
Hydraulic Cylinder
110×900 mm (Diameter × Stroke)
Leaf Spring
7 leaves front, 8 main + 6 auxiliary leaves rear, 70×10mm
Braking System
Wet Brake
Steering System
Hydraulic Power Steering
Exhaust Treatment
Water Washing Treatment
Driving Position
Left-Hand Drive
Overall Vehicle Dimensions
4 × 1.5 × 1.3 m (Length × Width × Height)
Operator Standing Height
1.8 m

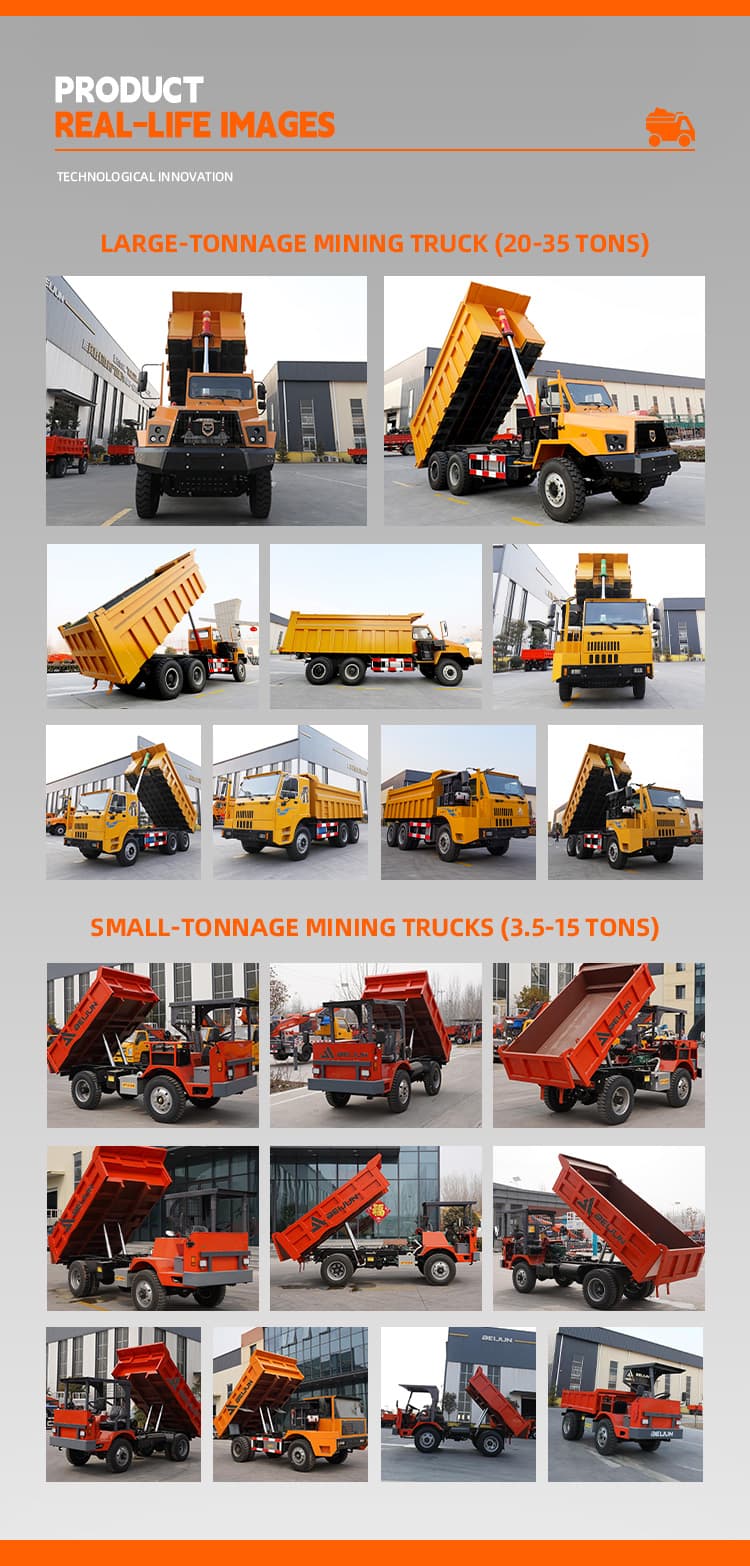

Products Description

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of underground mining equipment with extensive experience in design, production and global export.

2. What mining equipment do you supply?

We supply underground mining dump trucks, scaling jumbos, tunneling jumbos, wet shotcrete spraying rigs and rock drilling jumbos.

3. What applications are your machines suitable for?

Our equipment is widely used in underground mining, tunneling, hydropower projects and other underground construction applications.

4. Do you provide customized solutions?

Yes. We offer OEM and customized solutions based on tunnel size, rock conditions, haulage capacity and project requirements.

5. What certifications do your products have?

Our equipment can be supplied with CE and other certifications according to your market requirements.

6. What is your delivery time?

Standard delivery time is typically 20–60 days depending on model, quantity and customization requirements.

7. What payment terms do you accept?

We accept T/T, L/C and other payment methods upon mutual agreement.

8. Do you provide spare parts and after-sales support?

Yes. We provide spare parts, technical documentation, remote support and comprehensive after-sales service.

9. Which countries do you export to?

Our mining equipment is exported to Europe, Southeast Asia, the Middle East, Africa and South America.

10. How can I get a quotation?

Send us your required model, technical specifications and project details, and we will provide a quotation within 24 hours.
