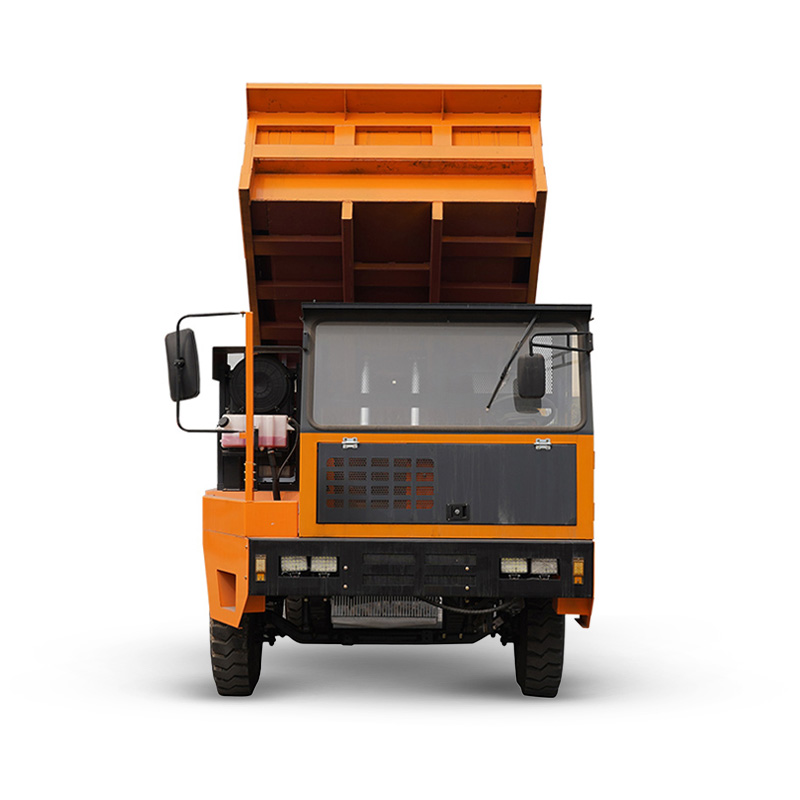

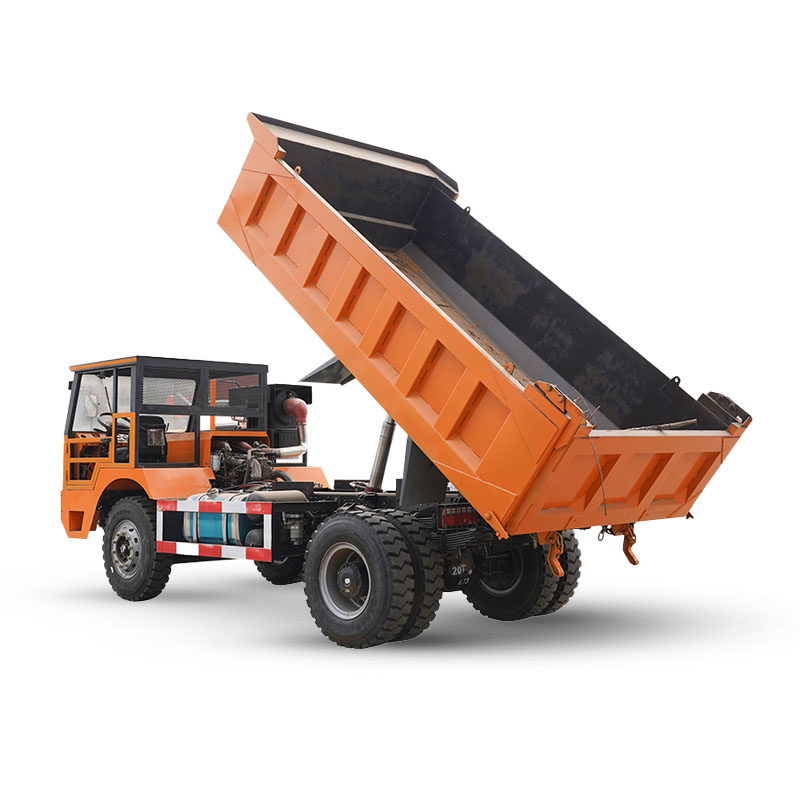

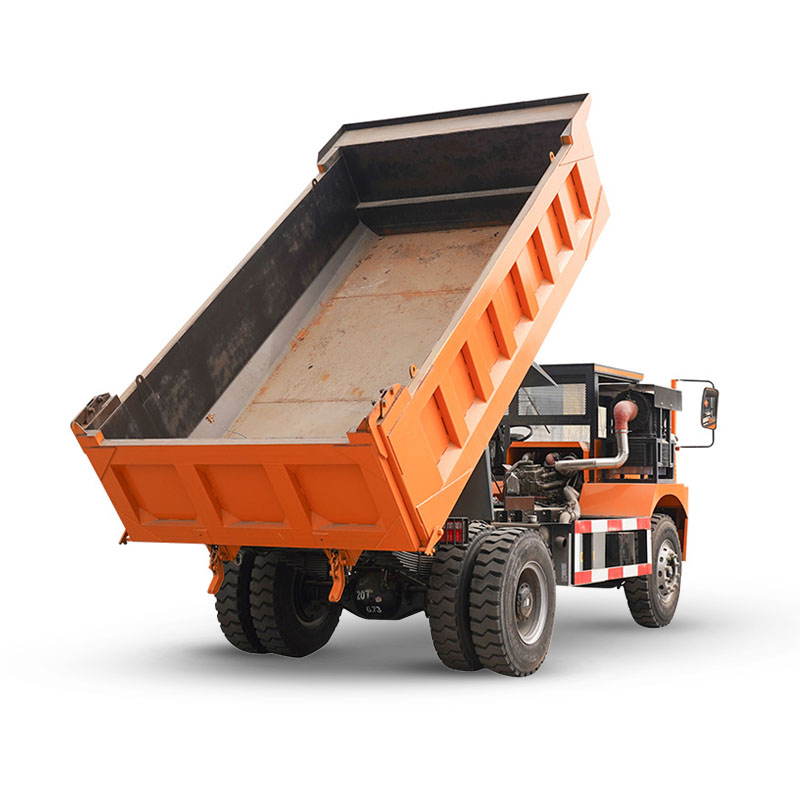

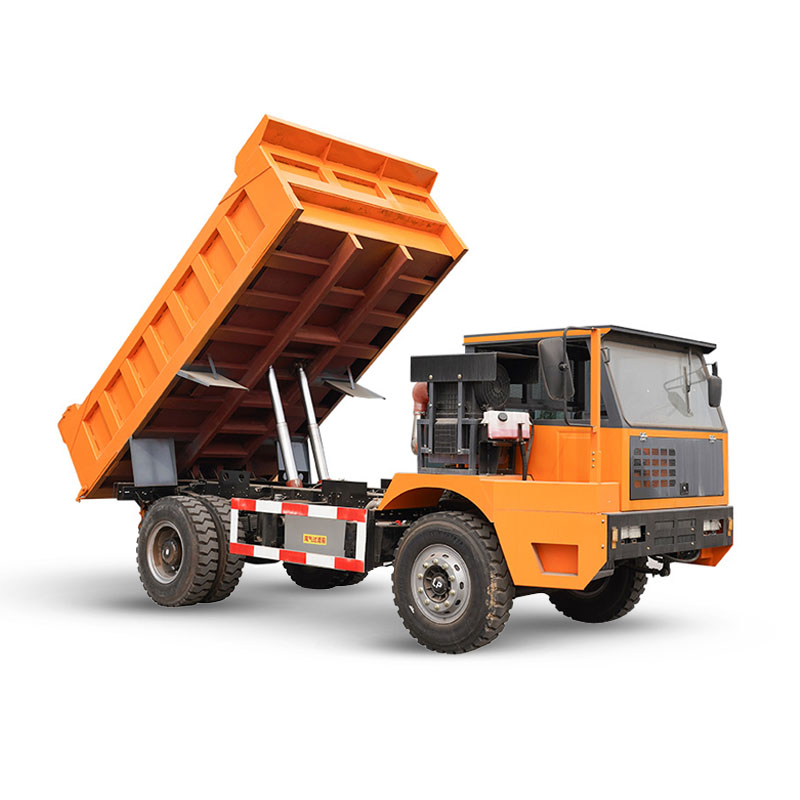

20-Ton Underground Mining Dump Truck for High Capacity Transport with Oil-Cooled Wet Brake System
20-Ton Underground Mining Dump Truck for High Capacity Transport with Oil-Cooled Wet Brake System

20-Ton Underground Mining Dump Truck for High Capacity Transport with Oil-Cooled Wet Brake System

20-ton underground mining dump truck with wet brake system for high-volume hauling operations.
Send Inquiry

Technical Specifications

Fuel Type
Diesel
Fuel Tank Capacity
210L
Driving Configuration
Left-hand drive
Cabin Type
Integral reinforced protective cabin
Engine Model
Yuchai China Stage III L7P2M7 (YC6L290-T301)
Engine Power
213kW
Transmission
10JSD120 Fast heavy-duty low-speed gearbox
Transfer Case
Hangzhou Advance HCF1180 gearbox
Rear Axle
Reinforced Handee mining grade portal axle (gear ratio 6.73)
Front Axle
WT2098EA/2S4 portal 4WD front axle (ratio 6.73)
Drive System
Part-time four-wheel drive
Braking System
Wet brake
Rear Wheel Track
2500mm
Front Wheel Track
2250mm
Wheelbase
3300mm
Chassis
Double-layer frame beam, 300mm height, 80mm width, 8+8 manganese steel main beam
Ground Clearance
330mm
Tipping Method
Double cylinder self-dumping
Front Tire
1000R20 Kunlun mining steel wire tire
Rear Tire
1000R20 Kunlun mining steel wire tire
Overall Dimensions
6550mm × 2500mm × 2500mm
Cargo Box Dimensions
4300mm × 2400mm × 800mm
Cargo Box Volume
8.6 m³
Cargo Plate Thickness
Standard: 10mm bottom, 8mm sides (customizable)
Steering Gear
Zhejiang Shibao steering gear
Steering System
Hydraulic power assistance
Front Leaf Spring
10 leaves, 90mm width × 16mm thickness
Rear Leaf Spring
12+8 (12 main leaves 18mm, 8 auxiliary leaves 18mm)
Exhaust Treatment
Water washing exhaust purification
Body Color
Construction Yellow

Products Description

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of underground mining equipment with extensive experience in design, production and global export.

2. What mining equipment do you supply?

We supply underground mining dump trucks, scaling jumbos, tunneling jumbos, wet shotcrete spraying rigs and rock drilling jumbos.

3. What applications are your machines suitable for?

Our equipment is widely used in underground mining, tunneling, hydropower projects and other underground construction applications.

4. Do you provide customized solutions?

Yes. We offer OEM and customized solutions based on tunnel size, rock conditions, haulage capacity and project requirements.

5. What certifications do your products have?

Our equipment can be supplied with CE and other certifications according to your market requirements.

6. What is your delivery time?

Standard delivery time is typically 20–60 days depending on model, quantity and customization requirements.

7. What payment terms do you accept?

We accept T/T, L/C and other payment methods upon mutual agreement.

8. Do you provide spare parts and after-sales support?

Yes. We provide spare parts, technical documentation, remote support and comprehensive after-sales service.

9. Which countries do you export to?

Our mining equipment is exported to Europe, Southeast Asia, the Middle East, Africa and South America.

10. How can I get a quotation?

Send us your required model, technical specifications and project details, and we will provide a quotation within 24 hours.
