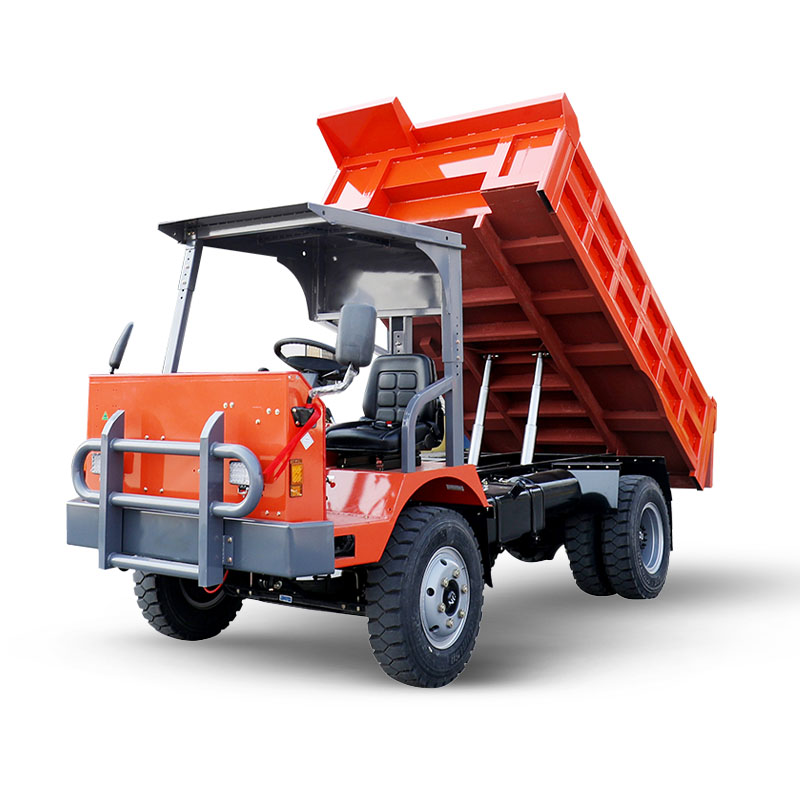

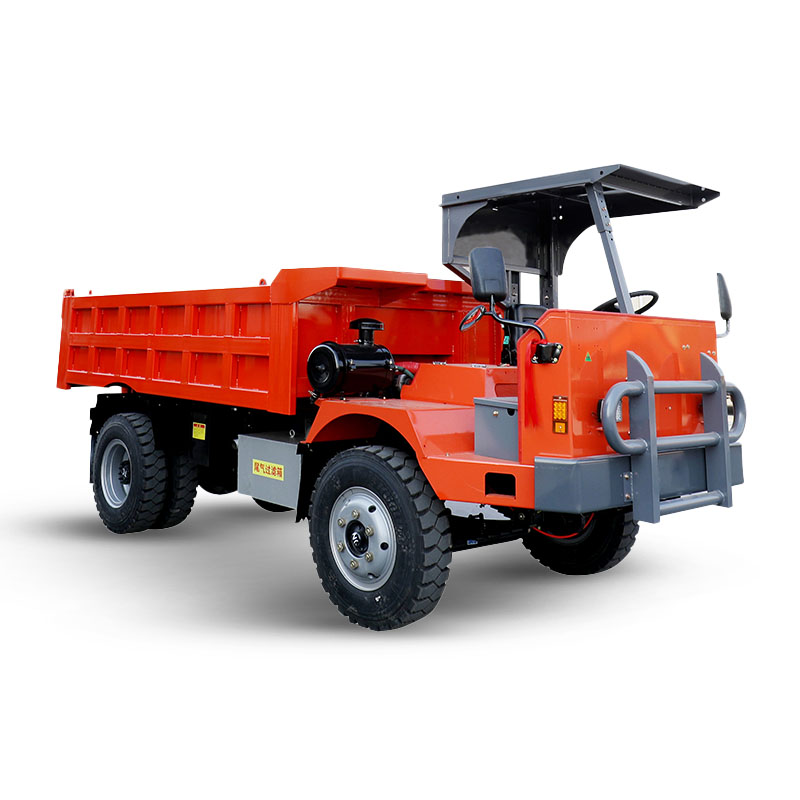

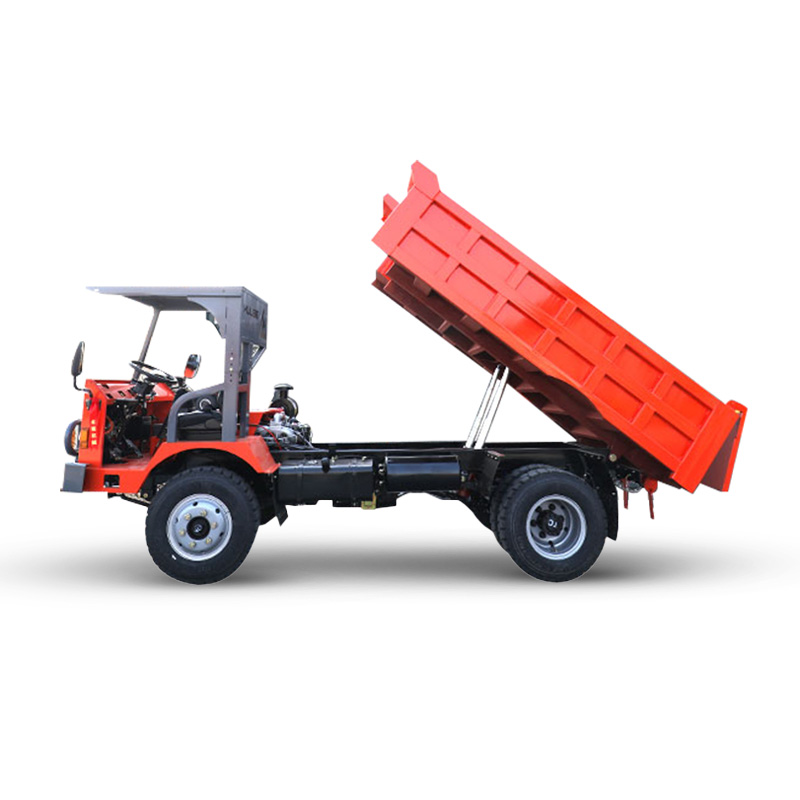

10-Ton Heavy Duty Underground Mining Dump Truck for Large Mines with Oil-Cooled Wet Brake System
10-Ton Heavy Duty Underground Mining Dump Truck for Large Mines with Oil-Cooled Wet Brake System

10-Ton Heavy Duty Underground Mining Dump Truck for Large Mines with Oil-Cooled Wet Brake System

Heavy-duty 10-ton underground mining dump truck with wet brake system for large tunnel hauling.
Send Inquiry

Technical Specifications

Engine Model
Yunnei China National III 4102 intercooled turbocharged engine (YN4EL120-30CR, 88kW)
Gearbox Model
Wanliyang 545 rear-mounted high & low speed gearbox
Axle Model
Front Axle 1098; Rear Axle 1098 (Wanteng)
Cargo Box Dimensions
3.2 × 1.8 × 0.6 m
Cargo Box Steel Plate
8mm Bottom, 6mm Sides
Tire Model
750-16 Chaoyang Mining Steel Wire Tires (Rear Dual Wheels)
Frame Model
Cold Riveted: 200×65×8+6 mm
Leaf Spring
Front: 10 Leaves; Rear: 10+5 Leaves, 75×13 mm
Braking System
Wet Brake
Exhaust Treatment
Water washing treatment
Overall Vehicle Dimensions
4.8 × 1.8 × 1.6 m (Length × Width × Height)
Operator Standing Height
1.85 m
Gear Shift Mode
Cable Gear Shift
Steering System
Hydraulic power steering
Driving Position
Left-hand drive

Products Description

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

3.5-Ton Underground Dump Truck Low Fuel Consumption Compact Body Powerful Engine with Wet Brake System

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of underground mining equipment with extensive experience in design, production and global export.

2. What mining equipment do you supply?

We supply underground mining dump trucks, scaling jumbos, tunneling jumbos, wet shotcrete spraying rigs and rock drilling jumbos.

3. What applications are your machines suitable for?

Our equipment is widely used in underground mining, tunneling, hydropower projects and other underground construction applications.

4. Do you provide customized solutions?

Yes. We offer OEM and customized solutions based on tunnel size, rock conditions, haulage capacity and project requirements.

5. What certifications do your products have?

Our equipment can be supplied with CE and other certifications according to your market requirements.

6. What is your delivery time?

Standard delivery time is typically 20–60 days depending on model, quantity and customization requirements.

7. What payment terms do you accept?

We accept T/T, L/C and other payment methods upon mutual agreement.

8. Do you provide spare parts and after-sales support?

Yes. We provide spare parts, technical documentation, remote support and comprehensive after-sales service.

9. Which countries do you export to?

Our mining equipment is exported to Europe, Southeast Asia, the Middle East, Africa and South America.

10. How can I get a quotation?

Send us your required model, technical specifications and project details, and we will provide a quotation within 24 hours.
