12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity
12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

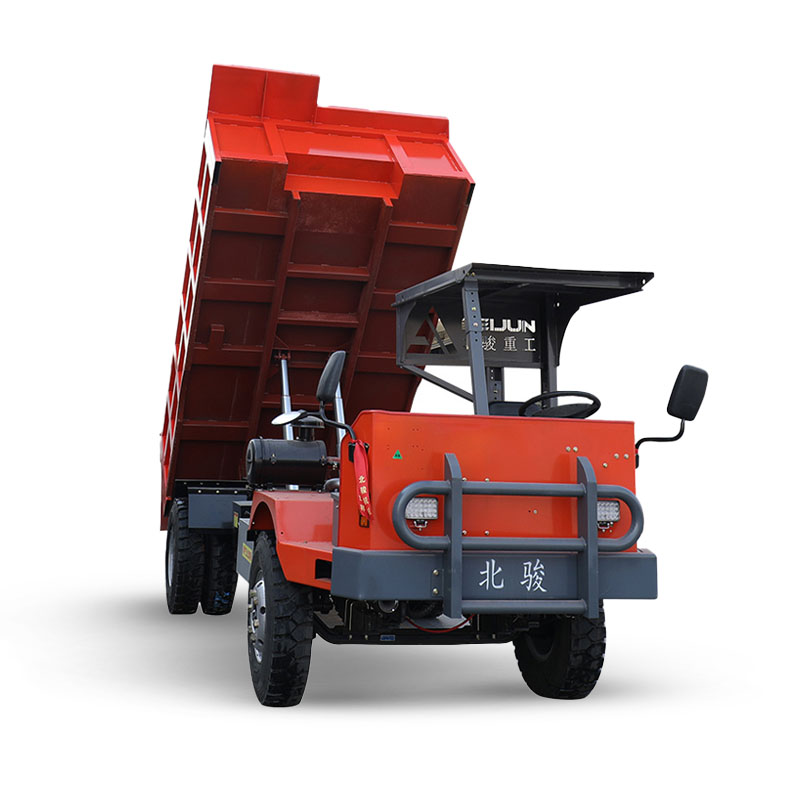

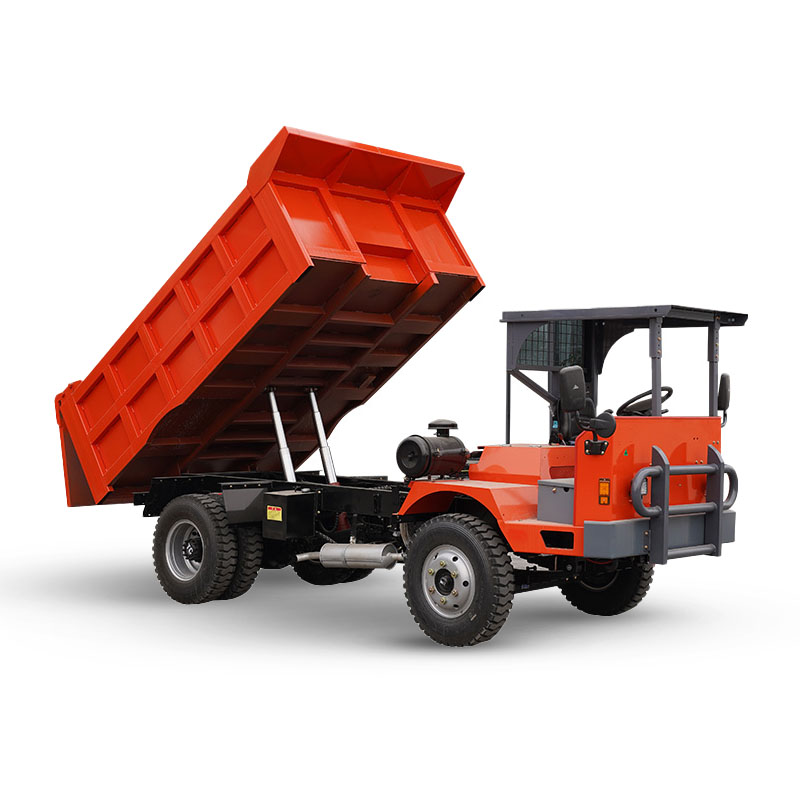

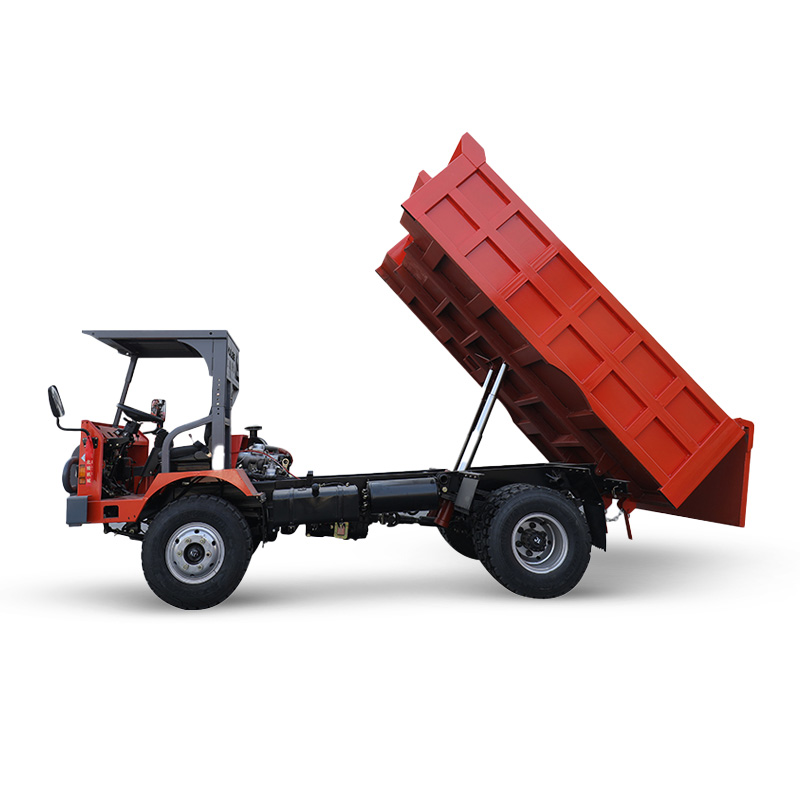

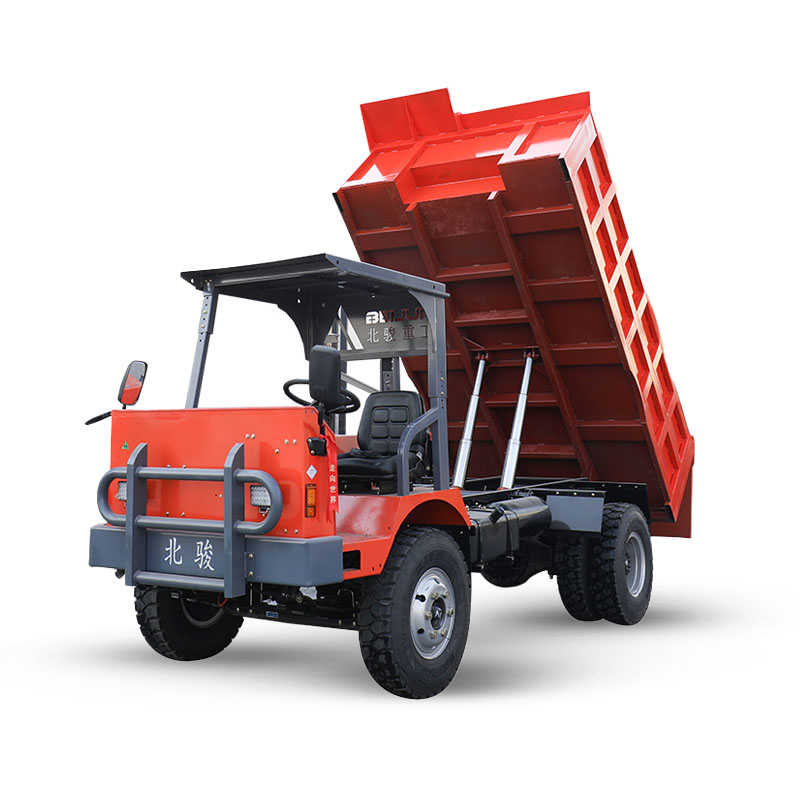

12-ton underground mining dump truck engineered for high-volume material transport, equipped with full air brake system for safe underground operation.
Send Inquiry

Technical Specifications

Engine Model
Yuchai 4102 Turbocharged Engine (110 HP)
Gearbox Model
Dongfeng 145 Heavy-duty Rear-Mounted High & Low Speed Gearbox
Axle Model
Rear Axle 1098
Cargo Box Dimensions
3.4 × 2.0 × 0.7 m
Cargo Box Steel Plate
8mm Bottom, 6mm Side
Tire Model
1.8m version: 750-16 Chaoyang Mining Steel Wire Tires (Rear Dual Wheels) 2.0m version: 825-16 Chaoyang Mining Steel Wire Tires (Rear Dual Wheels)
Frame Model
1.8m spec: Cold Riveted 200×65×8+8 mm 2.0m spec: Cold Riveted 220×65×8+6 mm
Leaf Spring
Front 10 Leaves, Rear 12+6 Leaves, 75×13 mm
Hydraulic Cylinder
115×1200 mm
Braking System
Air Cut-off Brake
Steering System
Hydraulic Power Steering
Exhaust Treatment
Water Washing Treatment
Driving Position
Left-Hand Drive
Cab
Standard Mining Protective Canopy
Overall Dimensions
5 × 2 × 1.7 m (Length × Width × Height)
Operator Clearance Height
1.85 m
Gear Shift Mode
Cable Gear Shift

Products Description

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

Shandong Beijun Heavy Industry Co., Ltd. is a high-tech enterprise specializing in mining and roadway transportation for over 12 years. Located in Jining City, a key industrial hub in Shandong Province, the company covers an area of over 200 acres with a total investment of 300 million RMB.

We integrate R&D, production, sales, and service, focusing on providing high-quality mining transportation solutions. Our main products include mining dump trucks, trackless rubber-wheeled passenger vehicles, and service vehicles, widely used in underground mining operations such as ore transport, personnel commuting, and equipment support.

Equipped with 172 advanced production and testing machines—such as CNC machining centers, laser cutters, welding robots, and coating lines—we achieve an annual output of 5,000 mining dump trucks. Our products are exported to more than 20 countries, including markets in the Middle East, Africa, and Southeast Asia.

We hold certifications including ISO9001, ISO14001, ISO45001, and EU CE, and own over 20 technical patents. Our products meet national mining safety standards and are trusted by customers across China, with a repurchase rate of 74%.

With a strong commitment to quality, innovation, and customer service, Beijun Heavy Industry is dedicated to becoming a globally recognized brand in mining transportation equipment, helping customers improve efficiency and reduce costs.

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

12-Ton Underground Mining Dump Truck for Deep Mining with High Capacity

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of underground mining equipment with extensive experience in design, production and global export.

2. What mining equipment do you supply?

We supply underground mining dump trucks, scaling jumbos, tunneling jumbos, wet shotcrete spraying rigs and rock drilling jumbos.

3. What applications are your machines suitable for?

Our equipment is widely used in underground mining, tunneling, hydropower projects and other underground construction applications.

4. Do you provide customized solutions?

Yes. We offer OEM and customized solutions based on tunnel size, rock conditions, haulage capacity and project requirements.

5. What certifications do your products have?

Our equipment can be supplied with CE and other certifications according to your market requirements.

6. What is your delivery time?

Standard delivery time is typically 20–60 days depending on model, quantity and customization requirements.

7. What payment terms do you accept?

We accept T/T, L/C and other payment methods upon mutual agreement.

8. Do you provide spare parts and after-sales support?

Yes. We provide spare parts, technical documentation, remote support and comprehensive after-sales service.

9. Which countries do you export to?

Our mining equipment is exported to Europe, Southeast Asia, the Middle East, Africa and South America.

10. How can I get a quotation?

Send us your required model, technical specifications and project details, and we will provide a quotation within 24 hours.
