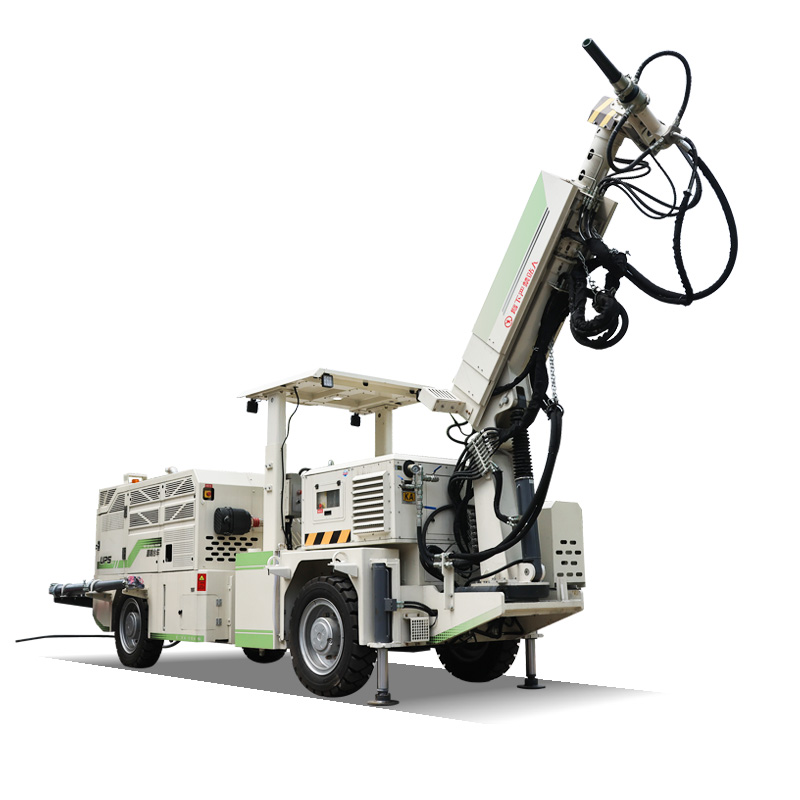

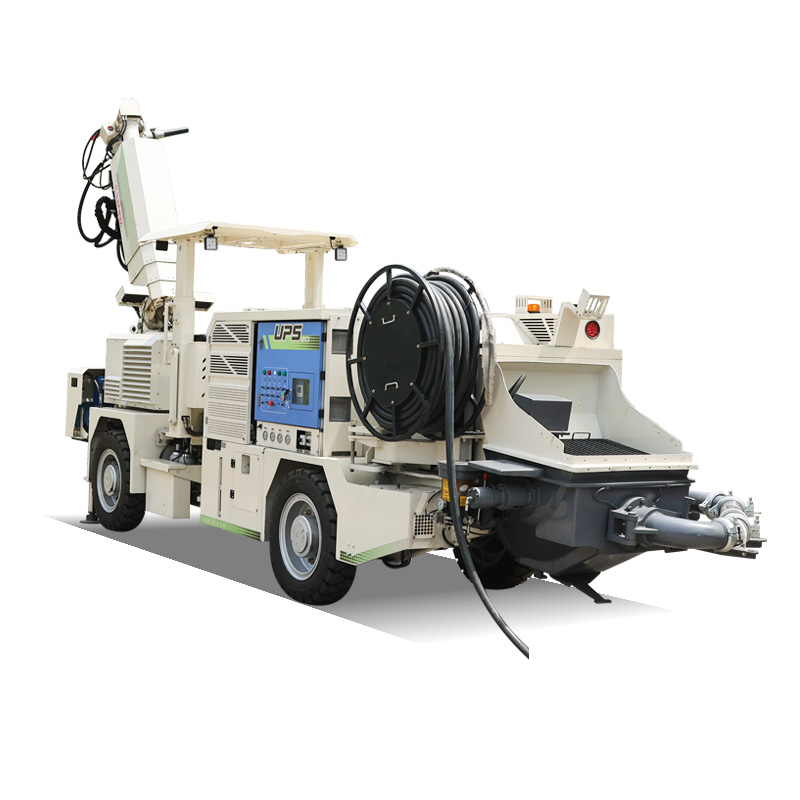

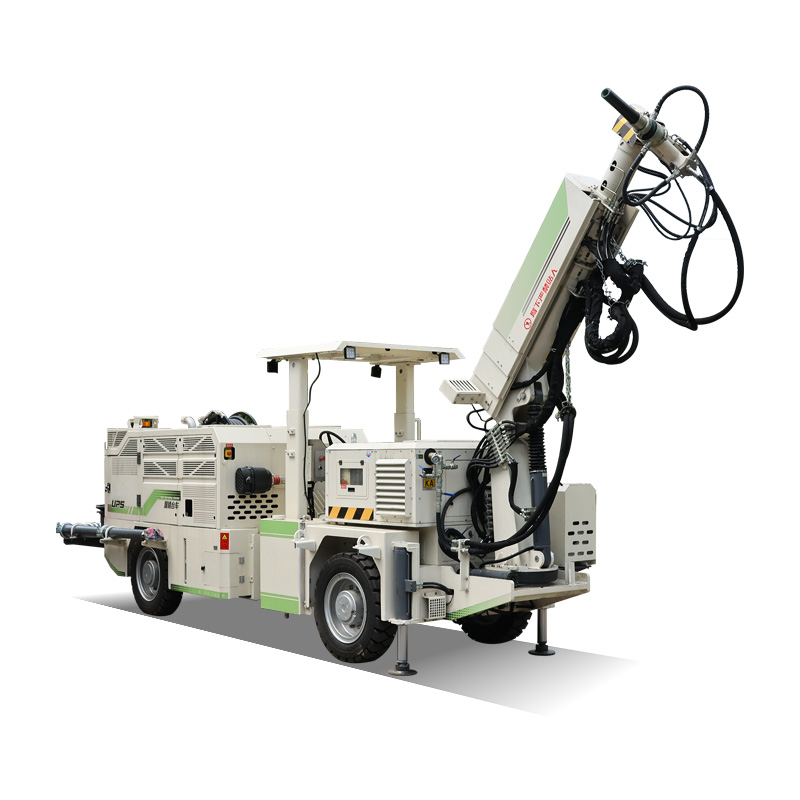

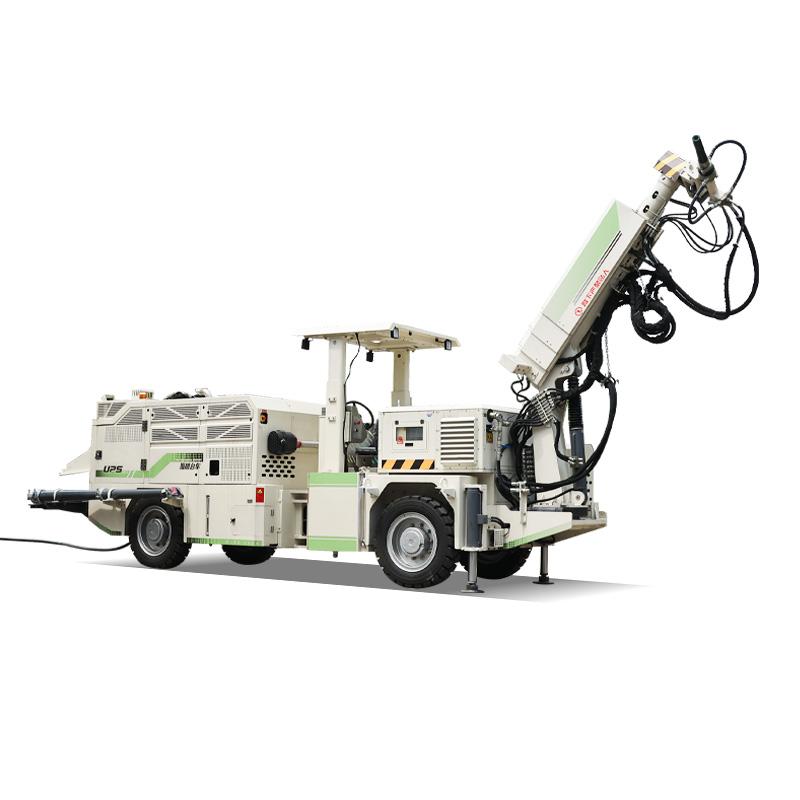

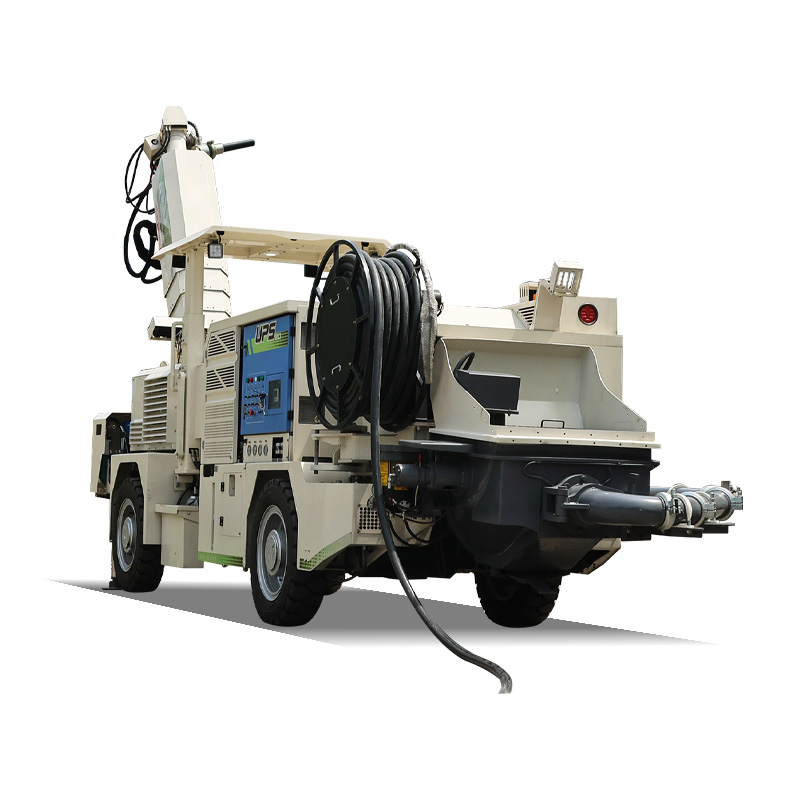

Wheeled Wet Shotcrete Machine for Tunnel Construction with Fast Travel and Uniform Concrete Spraying
Wheeled Wet Shotcrete Machine for Tunnel Construction with Fast Travel and Uniform Concrete Spraying

Wheeled Wet Shotcrete Machine for Tunnel Construction with Fast Travel and Uniform Concrete Spraying

Professional wet shotcrete spraying rig manufacturer supplying tunnel concrete spraying equipment for mining, tunneling and underground construction projects. OEM supported.
Send Inquiry

Technical Specifications

Overall dimensions (L × W × H)
4400 × 1560 × 1810mm
Machine weight
4610kg
Production capacity
10m³/h
Pump cylinder diameter
140mm
Pumping stroke
580mm
Delivery pipe diameter
125 ~ 80 reducing mm
Concrete outlet pressure
3-7.5MPa
Hopper capacity
0.3m³
Feeding height
1100mm
Concrete slump
120 ~ 180mm
Dust concentration
< 6mg/m³
Rebound rate
≤ 10%
Max. aggregate diameter
15mm
Wheelbase
1725
Travel speed
0 ~ 2
Max. gradeability
14°
Nozzle swing angle

Products Description

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment3.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg


        We are a comprehensive manufacturing enterprise integrating design research and development, production and sales. The group is located in Jining City, Shandong Province, the birthplace of Confucius and Mencius. The project covers an area of over 150 acres and has an investment of 300 million RMB. The group has three major production bases and a professional research and development center, and possesses a modern office environment, including a new workshop of 25,000 square meters, an office building, a research        building and 22,000 square meters of supporting facilities. The group continuously  strengthens team building and talent cultivation, and has gathered over 200 employees, many of whom are highly skilled professionals. The group is at the forefront of the construction      machinery industry andfocuses on providing customers with high-precision, well-equipped andhigh-quality solutions。

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

Wet Shotcrete Spraying Rig Tunnel Concrete Spraying Equipment.jpg

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of underground mining equipment with extensive experience in design, production and global export.

2. What mining equipment do you supply?

We supply underground mining dump trucks, scaling jumbos, tunneling jumbos, wet shotcrete spraying rigs and rock drilling jumbos.

3. What applications are your machines suitable for?

Our equipment is widely used in underground mining, tunneling, hydropower projects and other underground construction applications.

4. Do you provide customized solutions?

Yes. We offer OEM and customized solutions based on tunnel size, rock conditions, haulage capacity and project requirements.

5. What certifications do your products have?

Our equipment can be supplied with CE and other certifications according to your market requirements.

6. What is your delivery time?

Standard delivery time is typically 20–60 days depending on model, quantity and customization requirements.

7. What payment terms do you accept?

We accept T/T, L/C and other payment methods upon mutual agreement.

8. Do you provide spare parts and after-sales support?

Yes. We provide spare parts, technical documentation, remote support and comprehensive after-sales service.

9. Which countries do you export to?

Our mining equipment is exported to Europe, Southeast Asia, the Middle East, Africa and South America.

10. How can I get a quotation?

Send us your required model, technical specifications and project details, and we will provide a quotation within 24 hours.
