Products Description

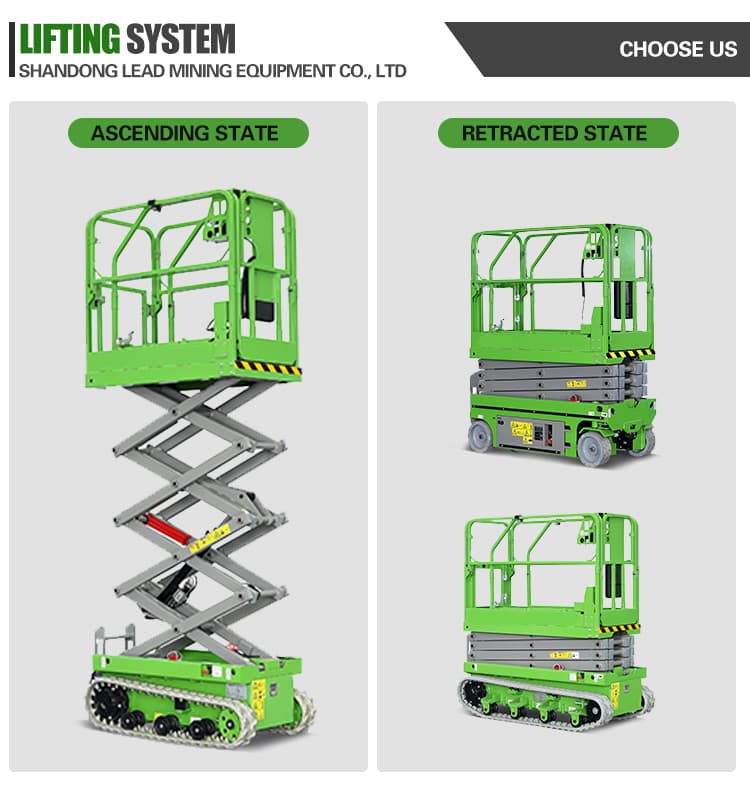

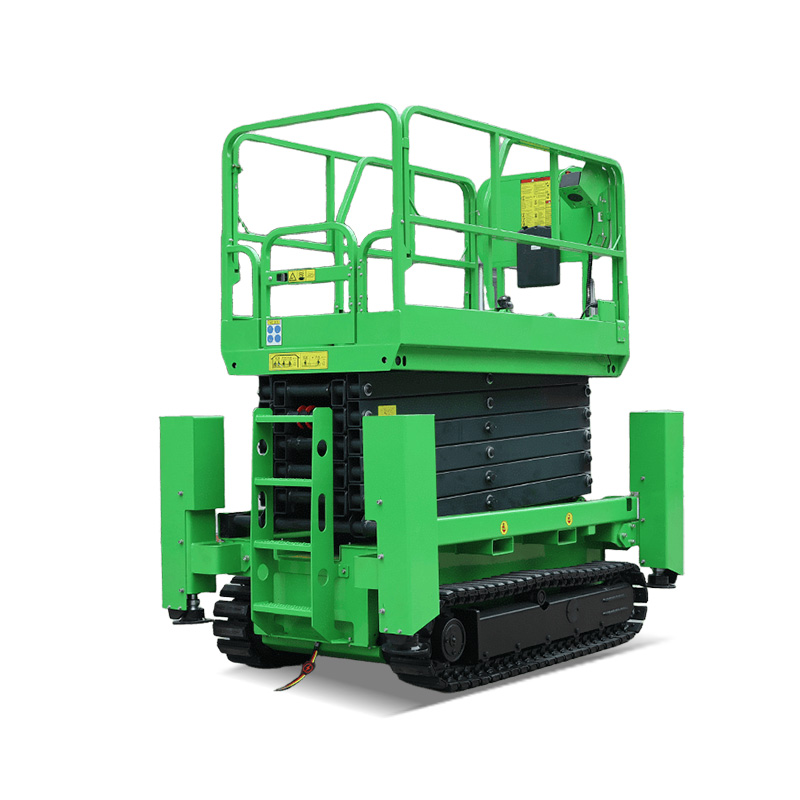

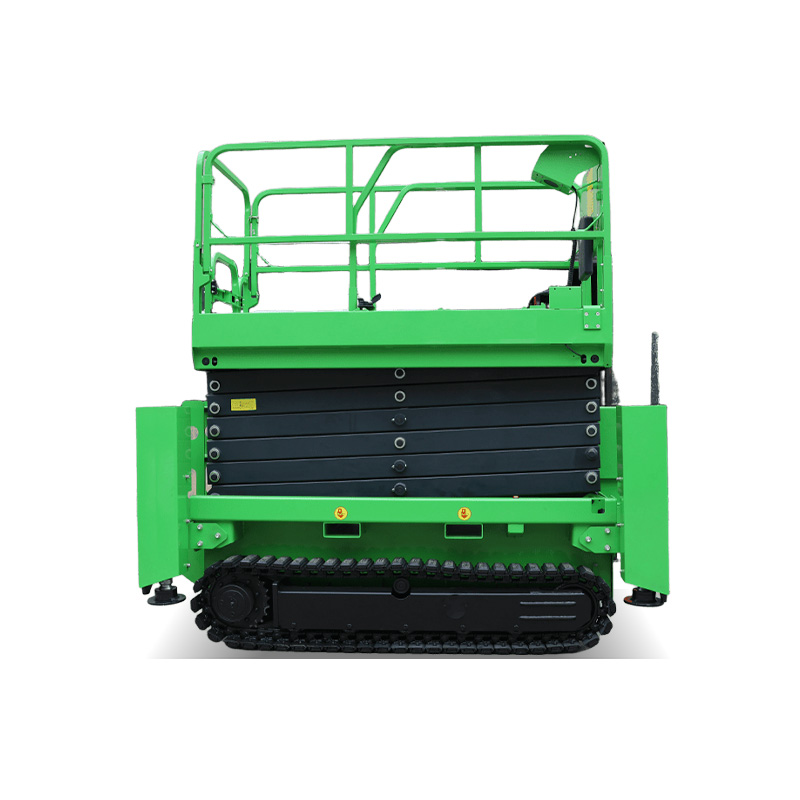

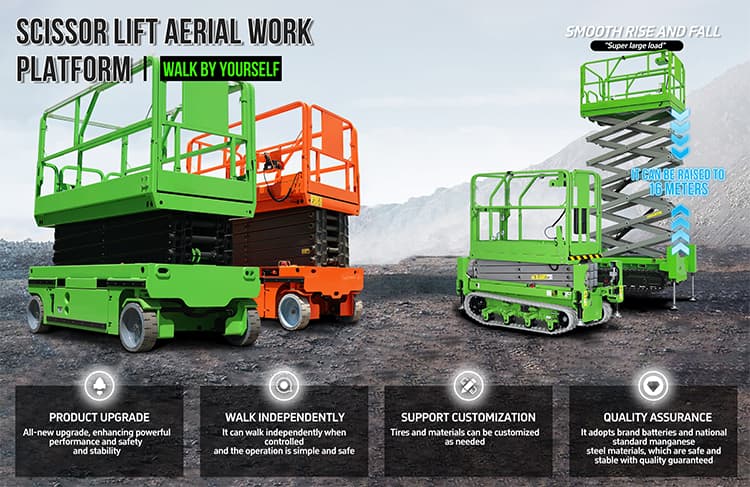

16m Platform Lift Freight Elevator Mobile Hydraulic Climbing Car Automatic Lift Self-Propelled Scissor

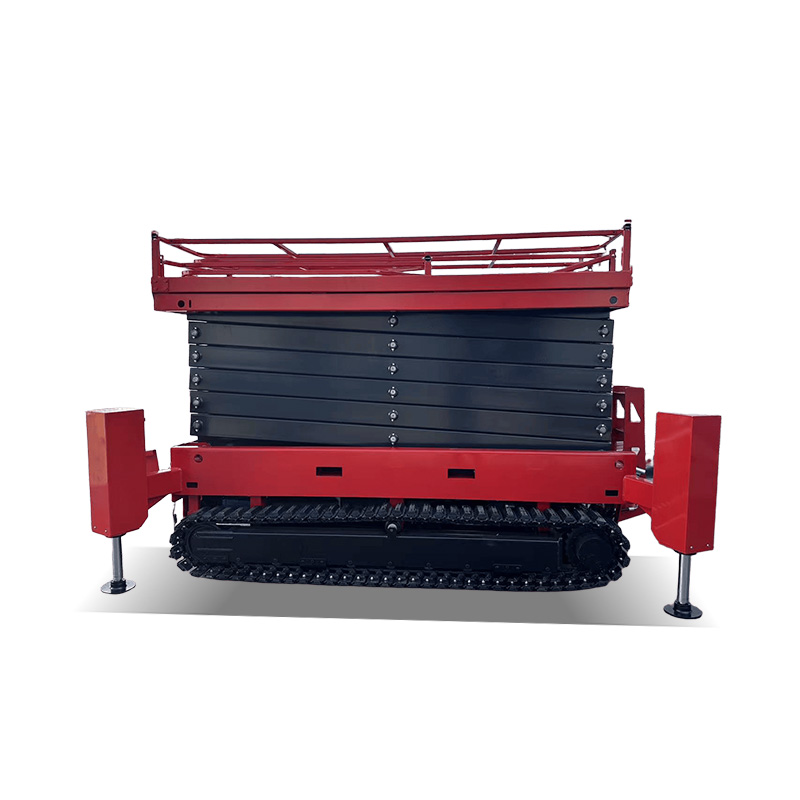

16m crawler scissor lift designed for large-scale construction and industrial maintenance. Tracked chassis delivers reliable performance on rough terrain.
Technical Specifications
Safe working load
320kg
Safe working load (extended platform)
113kg
Platform extension size (G)
0.9m
Max. number of occupants
2
Max. working height (A)
18m
Max. platform height (B)
16m
Overall length (C)
≤3800mm
Overall width (D)
approx. 2250mm
Overall height (guardrail unfolded)
approx. 2900mm
Overall height (guardrail folded) (E)
approx. 2300mm
Working platform size (L × W) (F)
3100mm × 1300mm
Lifting / driving motor
48V / 4.5kW
Charger
48V / 30A
Max. gradeability
30%
Max. allowable working inclination (X/Y)
1.5° / 3°
Tire
Φ381 × 127mm
Machine weight (approx.)
5000kg
